Basic Info.
Mathematical Model
Linear
Function
Automatic Control, Protection, Monitoring, Measurement
Certification
RoHS, CCC, CE
Customized
Non-Customized
Product Type
Sending Card
Transport Package
Cartons Box/ Wooden Case/ Flight Case
Product Description
Features:

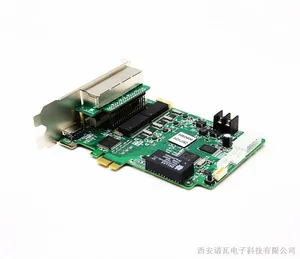

The sending card MSD600 is one of the sending card series in LED synchronous control system.
Product type: send card
Input resolution: up to 1920× 1200,2048 × 1152,2560 ×960 (width and height can be customized)
Carrying capacity: 2.3 megapixels
Supply voltage: 5V
Control mode: USB interface control
Video interface: HDMI/DVI
Audio interface: HDMI/3.5mm audio interface
Video format: RGB, ycrcb4:2:2, ycrcb4:4:4
Output interface: four network ports
Video source depth: 8/10/12bit
Light detection head: 1 channel
Work Condition
Input Interface |
Port | Number | Resolution specification |
DVI IN | 1 | VESA standard |
HDMI | 1 | EIA/CEA-861 standard,Conform to the HDMI-1.3 standard,Support HDCP |
Input Voltage | DC 3.3V~5.5V |
Rated Current | 0.75A |
Rated Power | 3.5W |
Working Temperature | -20ºC~75ºC |
Working Humidity | 0%RH~90%RH |
Size | 137.9mm×99.7mm×39.0mm |
Weight | 135.0g |
USB Line | 1.5m |
DVI Line | 1.5m |
Application
1. Advertising LED display screen
LED display can perfect combine text, pictures, video. Commerical adversting.
2. Stadium LED display screen
In stadium to live show, video play, slow motion playback, specific lens display, sports score information presentation.
Use in football field led screen fence, basketball stadium center screen, and screens in swimming stadium, Athletics stadium.
3.Transportation LED display screen
Widely use in the busy streets of city or on the highway.
Screens display weather, traffic regulations, to remind drivers to drive safely.
4. Stage rental LED display screen
Easily installed, removed and transport.
Widely used in stage show, concert, theater, party, and other entertainment event as background.
